New Model Extensions for X-POLE Sets using X-JOINT's. Please be careful to choose the correct metal & joint type.
***IMPORTANT*** - These extension pieces are for (NX) X-Pert sets and (NS) X-Sport sets that were purchased after 1st April 2014 and feature the new style X-Joint with extended key (NJ). If you require an extension for a set purchased prior to April 2014 please see this listing here X-PERT & X-SPORT Extensions (XS)
There are no screw threads on these extension pieces.
We currently have low stock of these (NX) extensions, however we can adapt (XS) extensions to use with (NX) and (NS) sets with an adaptor X-Joint, so if you require an extension length not listed or out of stock, please contact customer support at email@example.com
A 125mm and 250mm extension are included in the set. Optional extensions are available in 100, 125, 150, 175, 200, 250, 300, 500, 750, 1000 and 1500mm sizes. PLEASE NOTE: if ordering an extension that will be ADDED to the existsing extensions in your set, you may need to purchase an extra X-JOINT as well to connect the poles together. Please contact our sales office on 02 9589 2645 if you need clarification on this.
IF YOU'RE USING ALL YOUR EXTS & YOU'RE ONLY 50-200mm SHORT - please note the 125mm ext in your kit will not work with any additional extension 200mm and under, as these only have one hole for the X-Joint. You would need to replace the 125mm with an extension that incorporates both lengths (the 125mm & the required length). Call us if this is confusing before you order, as we can't refund shipping costs for items that are incorrectly chosen.

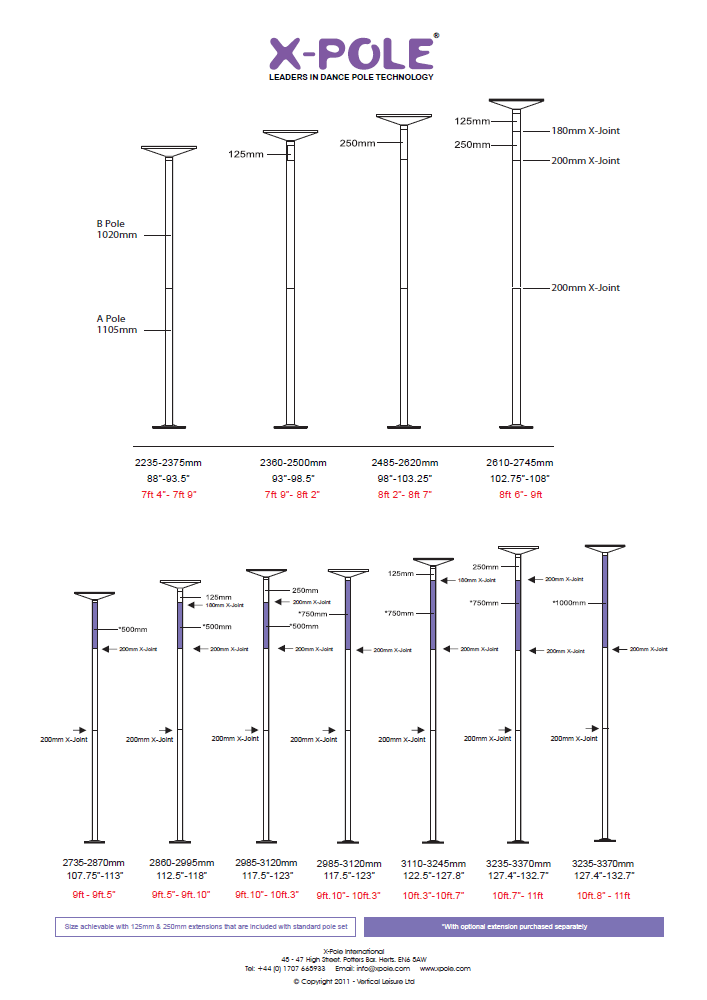

Height Chart and Extension Selection
Using the full allowed length of the screw adjuster and both the extensions included in the X-PERT set, this pole will fit ceilings from 2235mm to 2735mm.
Any further increase in height will require additional extensions.
The poles can be used with ceilings up to 3620mm using the standard upper support dome and optional extensions (purchased separately). Additional extensions and other optional installation parts can be purchased from your supplier or the X-POLE website.
Use the height chart below to work out what extensions you need. The less joints the better, always use a longer extension in preference to multiple shorter extensions if possible.
