X-POLE

X-POLE X-PERT & X-SPORT Extensions (XS)

$34.00
Pole Width *
Extension length *
XX XS Pole Finishes *

Current stock: 0

Extensions for X-POLE Sets using X-JOINT's. Please be careful to choose the correct metal & joint type.

***IMPORTANT*** - These extension pieces are for X-Pert sets that purchased between 2010 and March 2014 that use an X-Joint join (XX). There are no screw threads on these extension pieces. These are NOT compatible with (NX) model X-Pert sets sold after April 2014 unless you also purchase an X-Joint adaptor available here: X-JOINT Adaptor (Key to Pin) 200mm (NJA) - note: you may need more than one Adaptor, if you are unsure please contact us at sales@x-pole.com.au. For extensions that are compatible with (NX) model X-Pert sets, see here: New X-PERT & X-SPORT (NE) Extensions



A 125mm and 250mm extension are included in the set. Optional extensions are available in 100, 125, 150, 175, 200, 250, 300, 500, 750, 1000 and 1500mm sizes. PLEASE NOTE: if ordering an extension that will be ADDED to the existsing extensions in your set, you may need to purchase an extra X-JOINT as well to connect the poles together. Please contact our sales office on 02 9589 2645 or at sales@x-pole.com.au if you need clarification on this.

IF YOU'RE USING ALL YOUR EXTS & YOU'RE ONLY 50-200mm SHORT - please note the 125mm ext in your kit will not work with any additional extension 200mm and under, as these only have one hole for the X-Joint. You would need to replace the 125mm with an extension that incorporates both lengths (the 125mm & the required length). Call us if this is confusing before you order, as we can't refund shipping costs for items that are incorrectly chosen.

Height Chart and Extension Selection
Using the full allowed length of the bottom adjuster and both of the extensions included in the X-PERT set, your pole will fit ceilings from 2235mm  to 2735mm.

Any further increase in height will require additional extensions.


The poles can be used with ceilings up to 3370mm using the standard upper support dome and optional extensions (purchased separately). Additional extensions and other optional installation parts can be purchased from your supplier or the X-POLE website. For ceiling heights over 3370mm it is compulsory to use a ceiling plate or permanent ceiling mount. Email us at for more info sales@x-pole.com.au

Use the height chart below to work out what length of extension you need - the less joints the better, always choose an extension that will mean your pole will have as few joints as possible.

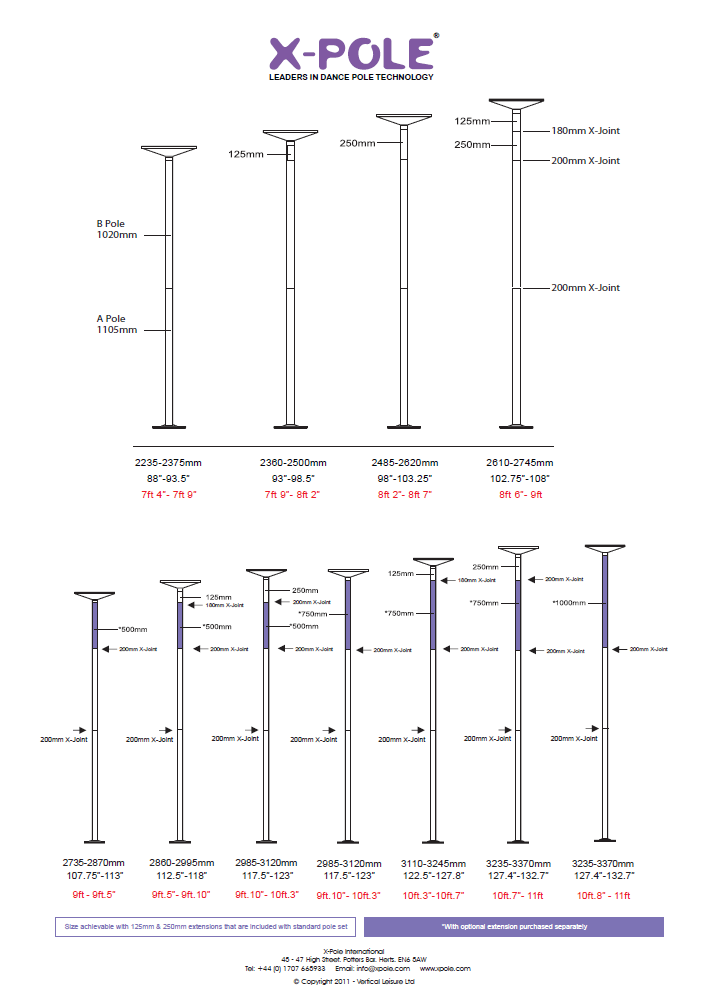

Height Chart
